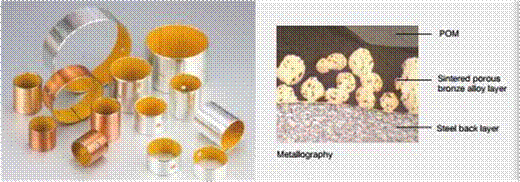

HMEC DX bushing is a kind of marginal lubricating bushing. It is backed with copper-plated steel with porous bronze sintered on it and polymers (POM) imbeded into the bores of the bronze. The steel back provides the products with high quality low carbon steel. Oil dents stamped on the surface of the polymer can achieve good lubrication between the bushing and its mating axls. It is of good anti-abrassion and load capacity. The plating coating on the surface is erosion protective and it is enviromental protective as no lead included in the surface of polymer POM. Products of HMEC DX series bushings are widely used on automotive chassis, forging machines, mine quarrying machines, metal melting and casting machines and in water irrigating and steel rolling industries.
Physical and Mechanical Performance
Performance Index		Data	Performance Index		Data
Max Load (P)	Static Load	140N/mm²	Friction Coefficient (u)	Grease Lubrication	0.06～0.12
	Dynamic Load	70N/mm²
Linear Vocity (V)	GreaseLubrication	2.5m/s	Matching Axis	Hardness	>270HB
				Roughness	Ra=0.4～1.25
			Work Temperature		-40～+120℃
Max PV Value	Grease Lubrication	2.8N/mm².m/s	Heat-conducting Coefficient		52W/(M-K)
			Heat-expansion Coefficient （Axial)		11×106K1
