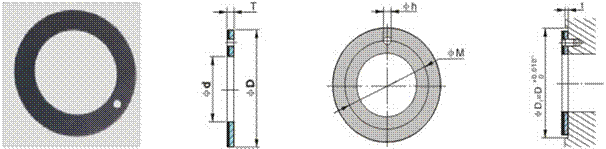

Imperial Standard DU Washer
HMEC Type no. Corresponding Type no. Washer Dimension Installation Size
¦µD  0
-0.010		 ¦µd +0.010
 0		 T  0
-0.002		 ¦µM +0.010
 0		 ¦µh +0.010
 0		 t +0.010
 0		 ¦µD1 +0.010
 0
06L10 DU06W 0.875 0.500 0.063 0.682 0.067 0.040 0.875
07L10 DU07W 1.000 0.562 0.776 1.000
08L10 DU08W 1.125 0.625 0.870 0.099 1.125
09L10 DU09W 1.187 0.687 0.932 1.187
10L10 DU10W 1.250 0.750 0.995 1.250
11L10 DU11W 1.375 0.812 1.089 1.375
12L10 DU12W 1.500 0.875 1.182 0.130 1.500
14L10 DU14W 1.750 1.000 1.370 1.750
16L10 DU16W 2.000 1.125 1.557 0.161 2.000
18L10 DU18W 2.125 1.250 1.682 2.125
20L10 DU20W 2.250 1.375 1.807 2.250
22L10 DU22W 2.500 1.500 1.995 0.92 2.500
24L10 DU24W 2.625 1.625 2.120 2.625
26L10 DU26W 2.750 1.750 2.245 2.750
28L10 DU28W 3.000 2.000 0.093 2.495 0.070 3.000
30L10 DU30W 3.125 2.215 2.620 3.125
32L10 DU32W 3.250 2.250 2.745 3.250
