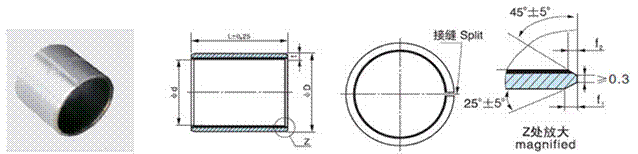

Imperial Standard DU Bushig
HMEC Type no. Corresponding Type no. Nominal Diameter Bush Wall
t		 Axle Housing Installed
I.D		 f1 f2
¦µd ¦µD L
Z0202L10 02DU02 1/8 3/16 1/8 0.0315
0.0305		 0.1243
0.1236		 0.1878
0.1873		 0.1268
0.1243		 0.008
0.024		 0.004
0.012
Z0203L10 02DU03 3/16
Z0303L10 03DU03 3/16 1/4 3/16 0.1865
0.1858		 0.2503
0.2497		 0.1893
0.1867
Z0304L10 03DU04 1/4
Z0306L10 03DU06 3/8
Z0404L10 04DU04 1/4 5/16 1/4 0.2490
0.2481		 0.3128
0.3122		 0.2518
0.2492
Z0406L10 04DU06 3/8
Z0506L10 05DU06 5/16 3/8 3/8 0.3115
0.3106		 0.3753
0.3747		 0.3143
0.3117
Z0508L10 05DU08 1/2
Z0606L10 06DU06 3/8 15/32 3/8 0.0471
0.0461		 0.3740
0.3731		 0.4691
0.4684		 0.3769
0.3742		 0.020
0.040		 0.005
0.025
Z0608L10 06DU08 1/2
Z0612L10 06DU12 3/4
Z0708L10 07DU08 7/16 17/32 1/2 0.4365
0.4355		 0.5316
0.5309		 0.4394
0.4367
Z0712L10 07DU12 3/4
Z0808L10 08DU08 1/2 19/32 1/2 0.4990
0.4980		 0.5941
0.5934		 0.5019
0.4992
Z0810L10 08DU10 5/8
Z0814L10 08DU14 7/8
Z0908L10 09DU08 9/16 21/32 1/2 0.5615
0.5605		 0.6566
0.6559		 0.5644
0.5617
Z0912L10 09DU12 3/4
Z1008L10 10DU08 5/8 23/32 1/2 0.6240
0.6230		 0.7192
0.7184		 0.6270
0.6242
Z1010L10 10DU10 5/8
Z1012L10 10DU12 3/4
Z1208L10 12DU08 3/4 7/8 1/2 0.0627
0.0615		 0.7491
0.7479		 0.8755
0.8747		 0.7525
0.7493
Z1212L10 12DU12 3/4
Z1216L10 12DU16 1
Z1412L10 14DU12 7/8 1 3/4 0.8741
0.8729		 1.0005
0.9997		 0.8775
0.8743
Z1416L10 14DU16 1
Z1612L10 16DU12 1 9/8 3/4 0.0627
0.0615		 0.9991
0.9979		 1.1256
1.1246		 1.0026
0.9992		 0.020
0.040		 0.005
0.025
Z1616L10 16DU16 1
Z1812L10 18DU12 9/8 41/32 3/4 0.0784
0.0770		 1.1238
1.1226		 1.2818
1.2808		 1.1278
1.1240
Z1816L10 18DU16 1
Z2012L10 20DU12 5/4 45/32 3/4 1.2488
1.2472		 1.4068
1.4058		 1.2528
1.2490
Z2016L10 20DU16 1
Z2020L10 20DU20 5/4
Z2216L10 22DU16 11/8 49/32 1 1.3738
1.3722		 1.5318
1.5308		 1.3778
1.3740
Z2222L10 22DU22 11/8
Z2416L10 24DU16 3/2 53/32 1 1.4988
1.4972		 1.6568
1.6558		 1.5028
1.4990
Z2424L10 24DU24 3/2
Z2432L10 24DU32 2
Z2616L10 26DU16 13/8 57/32 1 1.6238
1.6222		 1.7818
1.7808		 1.6278
1.6240
Z2624L10 26DU24 3/2
Z2816L10 28DU16 7/4 31/16 1 0.0941
0.0923		 1.7487
1.7471		 1.9381
1.9371		 1.7535
1.7489
Z2828L10 28DU28 7/4
Z2832L10 28DU32 2
Z3016L10 30DU16 15/8 33/16 1 1.8737
1.8721		 2.0633
2.0621		 1.8787
1.8739
Z3030L10 30DU30 15/8
Z3036L10 30DU36 9/4
Z3216L10 32DU16 2 35/16 1 1.9987
1.9969		 2.1883
2.1871		 2.0037
1.9989
Z3232L10 32DU32 2
Z3240L10 32DU40 5/2
Z3632L10 36DU32 9/4 39/16 2 0.0928
0.0902		 2.2507
2.2489		 2.4377
2.4365		 2.2573
2.2509
Z3636L10 36DU36 9/4
Z3648L10 36DU48 3
Z4032L10 40DU32 5/2 43/16 2 2.5011
2.4993		 2.6881
2.6869		 2.5077
2.5013
Z4048L10 40DU48 3
Z4432L10 44DU32 11/4 47/16 2 2.7500
2.7482		 2.9370
2.9358		 2.7566
2.7502
Z4448L10 44DU48 3
Z4832L10 48DU32 3 51/16 5/2 3.0000
2.9982		 3.1872
3.1858		 3.0068
3.0002
Z4848L10 48DU48 3
Z4860L10 48DU60 15/4
Z6448L10 64DU48 4 67/16 3 4.0000
3.9978		 4.1872
4.1858		 4.0068
4.0002
Z6460L10 64DU60 15/4
Z6476L10 64DU76 19/4
