Three-row Rollers Slewing Ring (S series)

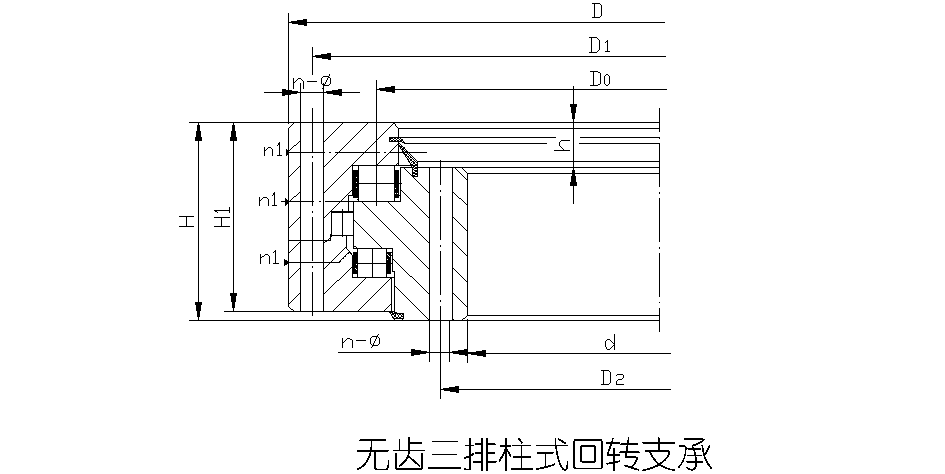

No teeth

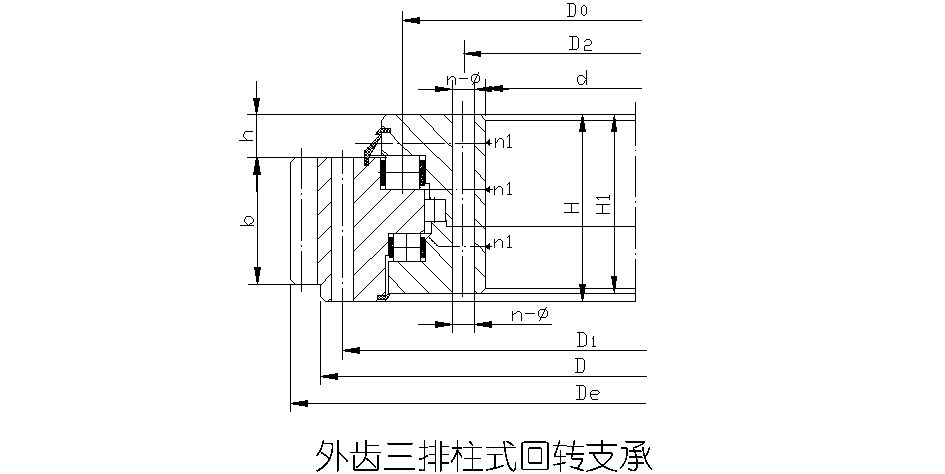

Outer teeth

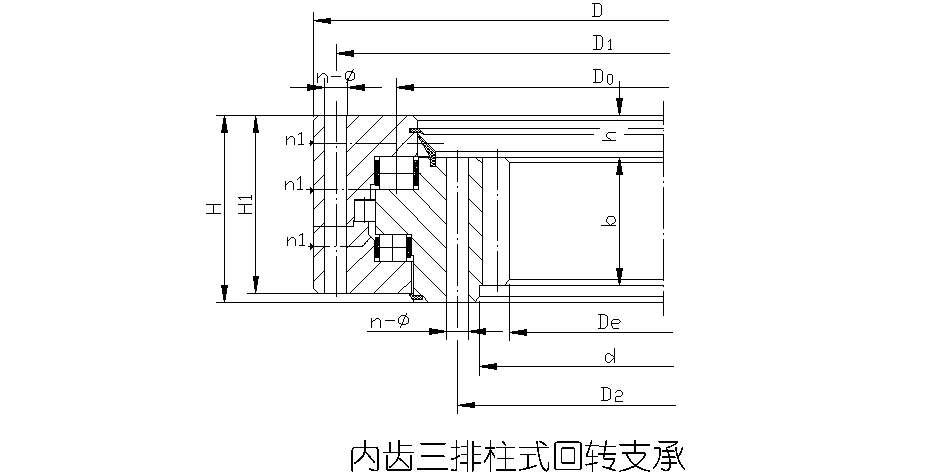

Inner teeth

⑴--Type of slewing ring
S:3-row-roller slewing ring
⑵--Code of gear driven type
W: Outer gear; N: Inner gear; U: No teeth

⑶--Code of installation hole type
     A: Both rings with installation bolt holes
     B: Both rings with screw holes
     C: Outer ring with installation screw holes, inner ring with installation bolt holes
     D: Outer ring with installation bolt holes, inner ting with installation screw holes
(4)--Upper row diameter of track center
(5)--Upper row roller diameter

Three-row Rollers Slewing Ring (S series) Basic Datas

Num.	Basic Size	Configuration Size					Mounting Size								Structural Size			Gear Data			Outer Gear Data		Inner Gear Data		Weigh kg
	SWA SNA	Outer teeth		Inner teeth		H	Outer teeth		Inner teeth		n	Bolt Hole	Screw Hole		n₁	H₁	h	b	x	m	D _e	Z	D _e	Z	Outer teeth	Inner teeth
		D	d	D	d		D₁	D₂	D₁	D₂		A Series	B/C/D Series
		D	d	D	d		D₁	D₂	D₁	D₂		φ	φ	T
1	1000.20	1156	854	1146	844	128	1106	906	1094	894	28	26	24	45	4	4	10	98	+0.5	10	1210	118	790	80	426	418
2	1120.20	1280	974	1266	964	128	1226	1026	1214	1014	32	26	24	45	4	4	10	98	+0.5	12	1344	109	900	76	478	470
3	1250.20	1410	1104	1396	1094	128	1356	1156	1344	1144	36	26	24	45	4	4	10	98	+0.5	12	1476	120	1032	87	540	524
4	1400.20	1560	1254	1546	1240	128	1506	1306	1494	1294	36	26	24	45	4	4	10	98	+0.5	14	1638	114	1162	84	626	614
5	1600.20	1760	1454	1746	1444	128	1706	1506	1694	1494	40	26	24	45	4	4	10	98	+0.5	14	1834	128	1372	99	708	686
6	1600.25	1790	1418	1782	1400	148	1726	1484	1716	1474	32	33	30	56	4	8	10	110	+0.5	14	1862	130	1330	96	992	966
7	1800.25	2000	1618	1982	1600	148	1926	1684	1916	1674	36	33	30	56	6	8	10	110	+0.5	16	2080	127	1520	96	1121	1096
8	2000.25	2190	1818	2182	1810	148	2126	1884	2116	1874	44	33	30	56	6	8	10	110	+0.5	16	2272	139	1728	109	1211	1196
9	2240.25	2430	2058	2422	2040	148	2366	2124	2356	2114	48	33	30	56	6	8	10	110	+0.5	18	2520	137	1944	109	1373	1396
10	2500.25	2700	2318	2682	2310	148	2626	2384	2616	2374	54	33	30	56	6	8	10	110	+0.5	18	2790	152	2214	124	1561	1532
11	2240.32	2464	2022	2458	2000	182	2394	2100	2380	2086	40	39	36	66	6	10	10	130	+0.5	18	2556	139	1908	107	1968	2002
12	2500.32	2730	2282	2718	2270	182	2654	2360	2640	2346	44	39	36	66	6	10	10	130	+0.5	18	2826	154	2178	122	2245	2199
13	2800.32	3040	2582	3018	2560	182	2954	2660	2940	2646	48	39	36	66	6	10	10	130	+0.5	20	3140	154	2460	124	2566	2526
14	3150.32	3380	2932	3368	2920	182	3304	3010	3290	2996	56	39	36	66	8	10	10	130	+0.5	20	3480	171	2820	142	2316	2788
15	2800.40	3040	2562	3038	2560	220	2962	2640	2960	2638	56	39	36	66	8	10	10	160	+0.5	20	3140	154	2460	124	3264	3213
16	3150.40	3380	2912	3388	2910	220	3312	2990	3310	2988	64	39	36	66	8	10	10	160	+0.5	22	3498	156	2794	128	3740	3683
17	3550.40	3780	3312	3788	3300	220	3712	3390	3710	3388	72	39	36	66	8	10	10	160	+0.5	22	3894	174	3190	146	4175	4171
18	4000.40	4240	3762	4238	3750	220	4162	3840	4160	3838	84	39	36	66	8	10	10	160	+0.5	24	4368	179	3624	152	4801	4810
19	3150.50	3430	2884	3416	2870	268	3340	2974	3326	2960	56	45	42	80	8	14	10	190	+0.5	24	3552	145	2736	115	5176	5072
20	3550.50	3840	3284	3816	3270	268	3740	3374	3726	3360	64	45	42	80	8	14	10	190	+0.5	24	3960	162	3144	132	5798	5816
21	4000.50	4290	3734	4266	3720	268	4190	3824	4176	3810	72	45	42	80	8	14	10	190	+0.5	24	4416	181	3600	151	6544	6512
22	4500.50	4780	4234	4766	4220	268	4690	4324	4676	4310	84	45	42	80	8	14	10	190	+0.5	24	4896	201	4104	172	7280	7302
23	5000.50	5280	4734	5266	4710	268	5190	4824	5176	4810	96	45	42	80	8	14	10	190	+0.5	24	5400	222	4584	192	8080	8098
