Three-row Rollers Slewing Ring (13 series)

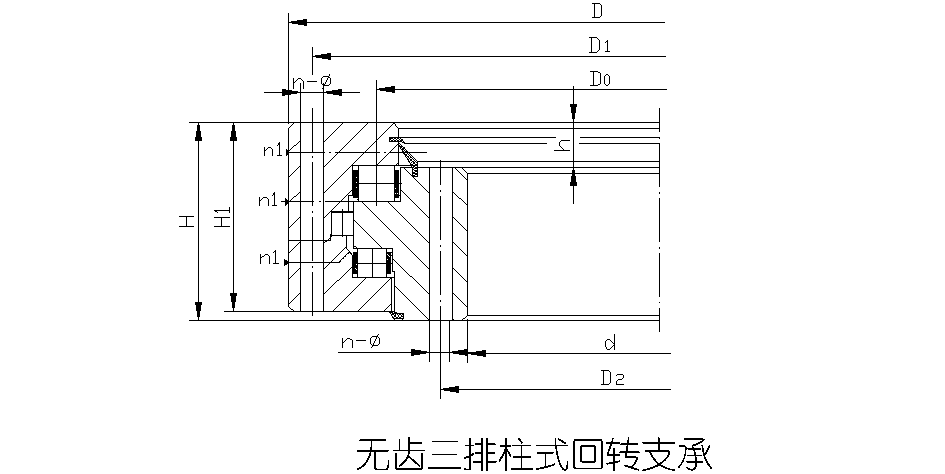

No teeth

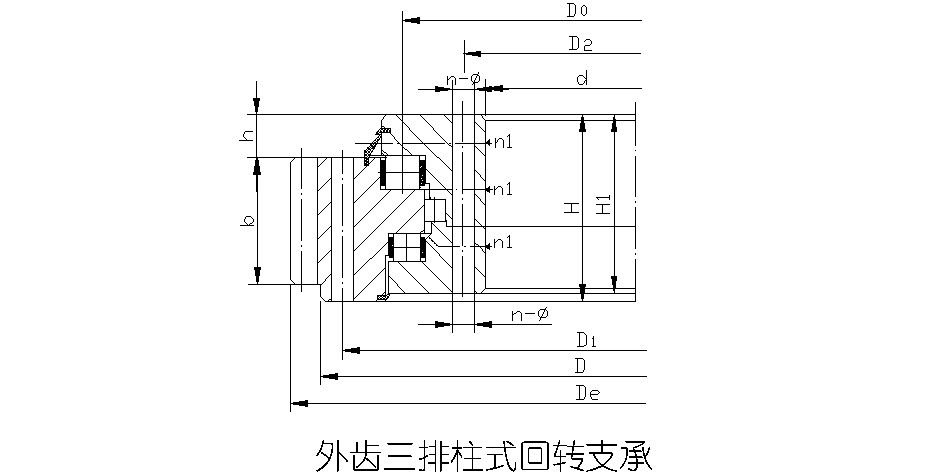

Outer teeth

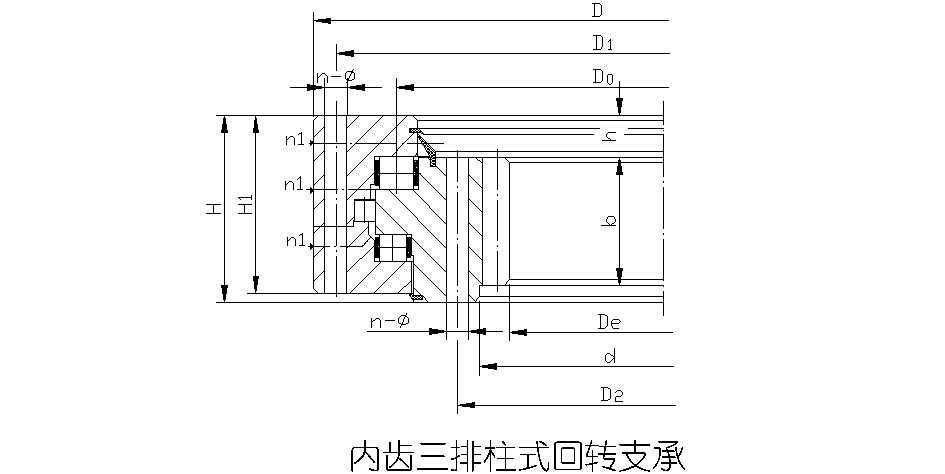

Inner teeth

⑴--Type of slewing ring
13:3-row-roller slewing ring
⑵--Code of gear driven type
0:No teeth
1:Normal,outer gear,
2:Bigger module, outer gear
3:Normal,inner gear
4:Bigger module, inner gear
(3)Upper row roller diameter
(4)Upper row diameter of track center
(5)Code of installation fitting type
　0:No fitting circle
　1:With fitting circle

　2:Special type
(6)Code of installation hole type
　0:Both rings with installation bolt holes
　1:Both rings with screw holes
　2:Outer ring with installation bolt holes, inner 　ring with installation screw holes
　3:Outer ring with installation screw 　holes, inner ring with installation bolt holes

For example：
3-row rollers slewing ring, normal module, inner gear, both rings with screw holes, Dia. of track center 1600mm, Dia. of roller ball 40/32/25, with fitting circle, refer to the following：
Slewing ring 133.40.1600.11 JB/T2300-99

Three-row rollers slewing ring Basic data (13 Series)

JB/T2300-1999 Basic data(13 Series)

Num.	Basic Size			Configuration Size			Mounting Size						Structural Size			Gear Data			Outer Gear Data		Inner Gear Data		Weight kg
	No teeth	Outer teeth	Inner teeth	D	d	H	D₁	D₂	n	Bolt Hole	Screw Hole		n₁	H₁	h	b	x	m	D_e	Z	D_e	Z
										0 Series	1,2,3 Series
										φ	φ	T
1	130.25.500	131.25.500	133.25.500	634	366	148	598	402	24	18	M16	32	4	138	32	80	+0.5	5	664	130	337	68	224
1	130.25.500	132.25.500	134.25.500	634	366	148	598	402	24	18	M16	32	4	138	32	80	+0.5	6	664.8	108	338.4	57	224
2	130.25.560	131.25.560	133.25.560	694	426	148	658	462	24	18	M16	32	4	138	32	80	+0.5	5	724	142	397	80	240
2	130.25.560	132.25.560	134.25.560	694	426	148	658	462	24	18	M16	32	4	138	32	80	+0.5	6	724.8	118	398.4	67	240
3	130.25.630	131.25.630	133.25.630	764	496	148	728	532	28	18	M16	32	4	138	32	80	+0.5	6	808.8	132	458.4	77	270
3	130.25.630	132.25.630	134.25.630	764	496	148	728	532	28	18	M16	32	4	138	32	80	+0.5	8	806.4	98	459.2	58	270
4	130.25.710	131.25.710	133.25.710	844	576	148	808	612	28	18	M16	32	4	138	32	80	+0.5	6	886.8	145	536.4	90	300
4	130.25.710	132.25.710	134.25.710	844	576	148	808	612	28	18	M16	32	4	138	32	80	+0.5	8	886.4	108	539.2	68	300
5	130.32.800	131.32.800	133.32.800	964	636	182	920	680	36	22	M20	40	4	172	40	120	+0.5	8	1006.4	123	595.2	75	500
5	130.32.800	132.32.800	134.32.800	964	636	182	920	680	36	22	M20	40	4	172	40	120	+0.5	10	1008	98	594	60	500
6	130.32.900	131.32.900	133.32.900	1064	736	182	1020	780	36	22	M20	40	4	172	40	120	+0.5	8	1102.4	135	691.2	87	600
6	130.32.900	132.32.900	134.32.900	1064	736	182	1020	780	36	22	M20	40	4	172	40	120	+0.5	10	1108	108	694	70	600
7	130.32.1000	131.32.1000	133.32.1000	1164	836	182	1120	880	40	22	M20	40	5	172	40	120	+0.5	10	1218	119	784	79	680
7	130.32.1000	132.32.1000	134.32.1000	1164	836	182	1120	880	40	22	M20	40	5	172	40	120	+0.5	12	1221.6	99	784.8	66	680
8	130.32.1120	131.32.1120	133.32.1120	1284	956	182	1240	1000	40	22	M20	40	5	172	40	120	+0.5	10	1338	131	904	91	820
8	130.32.1120	132.32.1120	134.32.1120	1284	956	182	1240	1000	40	22	M20	40	5	172	40	120	+0.5	12	1341.6	109	904.8	76	820
9	130.40.1250	131.40.1250	133.40.1250	1445	1055	220	1393	1107	45	26	M24	48	5	210	50	150	+0.5	12	1509.6	123	988.8	83	1200
9	130.40.1250	132.40.1250	134.40.1250	1445	1055	220	1393	1107	45	26	M24	48	5	210	50	150	+0.5	14	1509.2	105	985.6	71	1200
10	130.40.1400	131.40.1400	133.40.1400	1595	1205	220	1543	1257	45	26	M24	48	5	210	50	150	+0.5	12	1665.6	136	1144.8	96	1300
10	130.40.1400	132.40.1400	134.40.1400	1595	1205	220	1543	1257	45	26	M24	48	5	210	50	150	+0.5	14	1663.2	116	1139.6	82	1300
11	130.40.1600	131.40.1600	133.40.1600	1795	1405	220	1743	1457	48	26	M24	48	6	210	50	150	+0.5	14	1873.2	131	1335.6	96	1520
11	130.40.1600	132.40.1600	134.40.1600	1795	1405	220	1743	1457	48	26	M24	48	6	210	50	150	+0.5	16	1868.8	114	1334.4	84	1520
12	130.40.1800	131.40.1800	133.40.1800	1995	1605	220	1943	1657	48	26	M24	48	6	210	50	150	+0.5	14	2069.2	145	1531.6	110	1750
12	130.40.1800	132.40.1800	134.40.1800	1995	1605	220	1943	1657	48	26	M24	48	6	210	50	150	+0.5	16	2076.8	127	1526.4	96	1750
13	130.45.2000	131.45.2000	133.45.2000	2221	1779	231	2155	1845	60	33	M30	60	6	219	54	160	+0.5	16	2300.8	141	1702.4	107	2400
13	130.45.2000	132.45.2000	134.45.2000	2221	1779	231	2155	1845	60	33	M30	60	6	219	54	160	+0.5	18	2300.4	125	1699.2	95	2400
14	130.45.2240	131.45.2240	133.45.2240	2461	2019	231	2395	2085	60	33	M30	60	6	219	54	160	+0.5	16	2556.8	157	1926.4	121	2700
14	130.45.2240	132.45.2240	134.45.2240	2461	2019	231	2395	2085	60	33	M30	60	6	219	54	160	+0.5	18	2552.4	139	1933.2	108	2700
15	130.45.2500	131.45.2500	133.45.2500	2721	2279	231	2655	2345	72	33	M30	60	8	219	54	160	+0.5	18	2822.4	154	2185.2	122	3000
15	130.45.2500	132.45.2500	134.45.2500	2721	2279	231	2655	2345	72	33	M30	60	8	219	54	160	+0.5	20	2816	138	2188	110	3000
16	130.45.2800	131.45.2800	133.45.2800	3021	2579	231	2955	2645	72	33	M30	60	8	219	54	160	+0.5	18	3110.4	170	2491.2	139	3400
16	130.45.2800	132.45.2800	134.45.2800	3021	2579	231	2955	2645	72	33	M30	60	8	219	54	160	+0.5	20	3116	153	2488	125	3400
17	130.50.3150	131.50.3150	133.50.3150	3432	2868	270	3342	2958	72	45	M42	84	8	258	65	180	+0.5	20	3536	174	2768	139	5000
17	130.50.3150	132.50.3150	134.50.3150	3432	2868	270	3342	2958	72	45	M42	84	8	258	65	180	+0.5	22	3537.6	158	2758.8	126	5000
18	130.50.3550	131.50.3550	133.50.3550	3832	3268	270	3742	3358	72	45	M42	84	8	258	65	180	+0.5	20	3936	194	3168	159	5600
18	130.50.3550	132.50.3550	134.50.3550	3832	3268	270	3742	3358	72	45	M42	84	8	258	65	180	+0.5	22	3933.6	176	3154.8	144	5600
19	130.50.4000	131.50.4000	133.50.4000	4282	3718	270	4192	3808	80	45	M42	84	8	258	65	180	+0.5	22	4395.6	197	3116.8	165	6400
19	130.50.4000	132.50.4000	134.50.4000	4282	3718	270	4192	3808	80	45	M42	84	8	258	65	180	+0.5	25	4395	173	3610	145	6400
20	130.50.4500	131.50.4500	133.50.4500	4782	4218	270	4692	4308	80	45	M42	84	8	258	65	180	+0.5	22	4901.6	220	4122.8	188	7100
20	130.50.4500	132.50.4500	134.50.4500	4782	4218	270	4692	4308	80	45	M42	84	8	258	65	180	+0.5	25	4895	193	4110	165	7100
