Single-row Ball Slewing Ring (01 series)

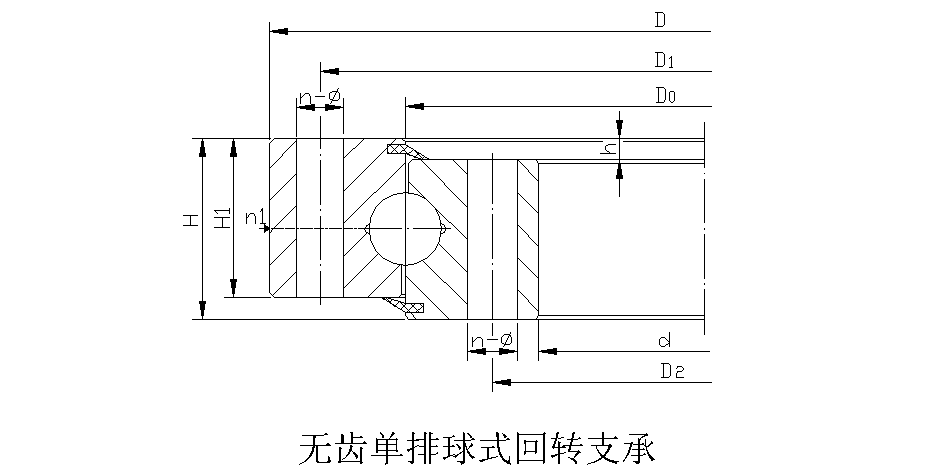

No teeth

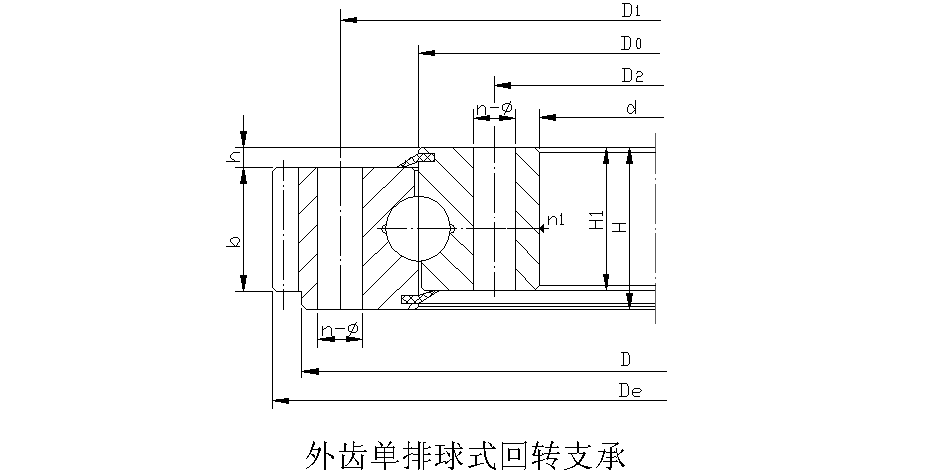

Outer teeth

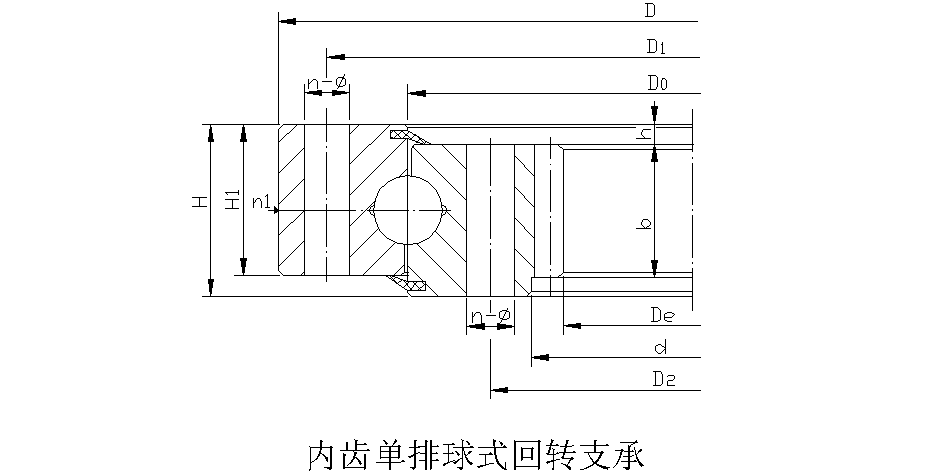

Inner teeth


⑴--Type of slewing ring
    01: Single-row ball
⑵--Code of gear driven type
    0: No teeth
    1: Normal, outer gear
    2: Bigger module, outer gear
    3: Normal, inner gear
    4: Bigger module, inner gear
⑶--Dia. of roller ball, mm
⑷--Dia. of track center, mm




 ⑸--Code of installation fitting type
     0: No fitting circle
     1: With fitting circle
     2: Special type
⑹--Code of installation hole type
     0: Both rings with installation bolt holes
     1: Both rings with installation screw holes
     2: Outer ring with installation bolt 　holes, inner ring with installation screw holes
     3: Outer ring with installation screw 　 　 　holes, inner ring with installation bolt holes
JB/T2300-1999 Basic data (01 Series)

Num. Basic Size Configuration Size Mounting Size Structural Size Gear Data Outer Gear Data Inner Gear Data Weight kg
No teeth Outer teeth Inner teeth D d H D1 D2 n φ n<1 H1 h b x m De Z De Z
1 010*30*500 011*30*500 013*30*500 602 398 80 566 434 20 18 4 70 10 60 +0.5 5 629 123 367 74 85
012*30*500 014*30*500 6 628.8 102 368.4 62
2 010*25*500 011*25*500 013*25*500 602 398 80 566 434 20 18 4 70 10 60 +0.5 5 629 123 367 74 85
012*25*500 014*25*500 6 628.8 102 368.4 62
3 010*30*560 011*30*560 013*30*560 662 458 80 626 494 20 18 4 70 10 60 +0.5 5 689 135 427 86 95
012*30*560 014*30*560 6 688.8 112 428.4 72
4 010*25*560 011*25*560 013*25*560 662 458 80 626 494 20 18 4 70 10 60 +0.5 5 689 135 427 86 95
012*25*560 014*25*560 6 688.8 112 428.4 72
5 010*30*630 011*30*630 013*30*630 732 528 80 696 564 24 18 4 70 10 60 +0.5 6 772.8 126 494.4 83 110
012*30*630 014*30*630 8 774.4 94 491.2 62
6 010*25*630 011*25*630 013*25*630 732 528 80 696 564 24 18 4 70 10 60 +0.5 6 772.8 126 494.4 83 110
012*25*630 014*25*630 8 774.4 94 491.2 62
7 010*30*710 011*30*710 013*30*710 812 608 80 776 644 24 18 4 70 10 60 +0.5 6 850.8 139 572.4 96 120
012*30*710 014*30*710 8 854.4 104 571.2 72
8 010*25*710 011*25*710 013*25*710 812 608 80 776 644 24 18 4 70 10 60 +0.5 6 850.8 139 572.4 96 120
012*25*710 014*25*710 8 854.4 104 571.2 72
9 010*40*800 011*40*800 013*40*800 922 678 100 878 722 30 22 6 90 10 80 +0.5 8 966.4 118 635.2 80 220
012*40*800 014*40*800 10 968 94 634 64
10 010*30*800 011*30*800 013*30*800 922 678 100 878 722 30 22 6 90 10 80 +0.5 8 966.4 118 635.2 80 220
012*30*800 014*30*800 10 968 94 634 64
11 010*40*900 011*40*900 013*40*900 1022 778 100 978 822 30 22 6 90 10 80 +0.5 8 1062.4 130 739.2 93 240
012*40*900 014*40*900 10 1068 104 734 74
12 010*30*900 011*30*900 013*30*900 1022 778 100 978 822 30 22 6 90 10 80 +0.5 8 1062.4 130 739.2 93 240
012*30*900 014*30*900 10 1068 104 734 74
13 010*40*1000 011*40*1000 013*40*1000 1122 878 100 1078 922 36 22 6 90 10 80 +0.5 10 1188 116 824 83 270
012*40*1000 014*40*1000 12 1185.6 96 820.8 69
14 010*30*1000 011*30*1000 013*30*1000 1122 878 100 1078 922 36 22 6 90 10 80 +0.5 10 1188 116 824 83 270
012*30*1000 014*30*1000 12 1185.6 96 820.8 69
15 010*40*1120 011*40*1120 013*40*1120 1242 998 100 1198 1042 36 22 6 90 10 80 +0.5 10 1298 127 944 95 300
012*40*1120 014*40*1120 12 1305.6 106 940.8 79
16 010*30*1120 011*30*1120 013*30*1120 1242 998 100 1198 1042 36 22 6 90 10 80 +0.5 10 1298 127 944 95 300
012*30*1120 014*30*1120 12 1305.6 106 940.8 79
17 010*45*1250 011*45*1250 013*45*1250 1390 1110 110 1337 1163 40 26 5 100 10 90 +0.5 12 1449.6 118 1048.8 88 420
012*45*1250 014*45*1250 14 1453.2 101 1041.6 75
18 010*35*1250 011*35*1250 013*35*1250 1390 1110 110 1337 1163 40 26 5 100 10 90 +0.5 12 1449.6 118 1048.8 88 420
012*35*1250 014*35*1250 14 1453.2 101 1041.6 75
19 010*45*1400 011*45*1400 013*45*1400 1540 1260 110 1487 1313 40 26 5 100 10 90 +0.5 12 1605.6 131 1192.8 100 480
012*45*1400 014*45*1400 14 1607.2 112 1195.6 86
20 010*35*1400 011*35*1400 013*35*1400 1540 1260 110 1487 1313 40 26 5 100 10 90 +0.5 12 1605.6 131 1192.8 100 480
012*35*1400 014*35*1400 14 1607.2 112 1195.6 86
21 010*45*1600 011*45*1600 013*45*1600 1740 1460 110 1687 1513 45 26 5 100 10 90 +0.5 14 1817.2 127 1391.6 100 550
012*45*1600 014*45*1600 16 1820.8 111 1382.4 87
22 010*35*1600 011*35*1600 013*35*1600 1740 1460 110 1687 1513 45 26 5 100 10 90 +0.5 14 1817.2 127 1391.6 100 550
012*35*1600 014*35*1600 16 1820.8 111 1382.4 87
23 010*45*1800 011*45*1800 013*45*1800 1940 1660 110 1887 1713 45 26 5 100 10 90 +0.5 14 2013.2 141 1573.6 113 610
012*45*1800 014*45*1800 16 2012.8 123 1574.4 99
24 010*35*1800 011*35*1800 013*35*1800 1940 1660 110 1887 1713 45 26 5 100 10 90 +0.5 14 2013.2 141 1573.6 113 610
012*35*1800 014*35*1800 16 2012.8 123 1574.4 99
25 010*60*2000 011*60*2000 013*60*2000 2178 1825 144 2110 1891 48 33 8 132 12 120 +0.5 16 2268.8 139 1734.4 109 1100
012*60*2000 014*60*2000 18 2264.4 123 1735.2 97
26 010*40*2000 011*40*200 013*40*200 2178 1825 144 2110 1891 48 33 8 132 12 120 +0.5 16 2268.8 139 1734.4 109 1100
012*40*2000 014*40*2000 18 2264.4 123 1735.2 97
27 010*60*2240 011*60*2240 013*60*2240 2418 2065 144 2350 2131 48 33 8 132 12 120 +0.5 16 2492.8 153 1990.4 125 1250
012*60*2240 014*60*2240 18 2498.4 136 1987.2 111
28 010*40*2240 011*40*2240 013*40*2240 2418 2065 144 2350 2131 48 33 8 132 12 120 +0.5 16 2492.8 153 1990.4 125 1250
012*40*2240 014*40*2240 18 2498.4 136 1987.2 111
29 010*60*2500 011*60*2500 013*60*2500 2678 2325 144 2610 2391 56 33 8 132 12 120 +0.5 18 2768.4 151 2339.2 125 1400
012*60*2500 014*60*2500 20 2776 136 2228 112
30 010*40*2500 011*40*2500 013*40*2500 2678 2325 144 2610 2391 56 33 8 132 12 120 +0.5 18 2768.4 151 2339.2 125 1400
012*40*2500 014*40*2500 20 2776 136 2228 112
31 010*60*2800 011*60*2800 013*60*2800 2978 2625 144 2910 2691 56 33 8 132 12 120 +0.5 18 3074.4 168 2527.2 141 1600
012*60*2800 014*60*2800 20 3076 151 2528 127
32 010*40*2800 011*40*2800 013*40*2800 2978 2625 144 2910 2691 56 33 8 132 12 120 +0.5 18 3074.4 168 2527.2 141 1600
012*40*2800 014*40*2800 20 3076 151 2528 127
33 010*75*3150 011*75*3150 013*75*3150 3376 2922 174 3686 3014 56 45 8 162 12 150 +0.5 20 3476 171 2828 142 2800
012*75*3150 014*75*3150 22 3471.6 155 2824.8 129
34 010*50*3150 011*50*3150 013*50*3150 3376 2922 174 3686 3014 56 45 8

162

 12 150 +0.5 20 3476 171 2828 142 2800
012*50*3150 014*50*3150 22 3471.6 155 2824.8 129
